    230VAC Off Grid Inverter 3.5KW Wireless Home High Frequency Solar Inverter

    Ask Lasest Price
    Brand Name : Tuxun
    Model Number : CNS110
    Certification : CE/EMC/ETL/LVD
    Price : $311-$344
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3000 PCS/M
    Delivery Time : 10~20 working days
    • Product Details
    • Company Profile

    230VAC Off Grid Inverter 3.5KW Wireless Home High Frequency Solar Inverter

    3.5KW Wireless Connected Home High Efficiency Inverter Off Grid Solar System Inverter


    Description:

    The main components of the horizontal inverter control machine

    1. Photovoltaic module: convert light energy into DC power, charge the battery through the all-in-one machine, or directly invert into AC power to supply power to the load.

    2. Mains or generator: connected to the AC input, it can supply power to the load and charge the battery at the same time. If not connected to a power source or generator, the system will work fine. Charging power is provided by batteries and photovoltaic modules.

    3. Battery: The function of the battery is to ensure the normal power consumption of the system load when the solar energy is insufficient and there is no commercial power.

    4. Household load: It can be connected to various household and office loads, including refrigerators, lamps, TV sets, fans, air conditioners, etc.
    flow load.


    5. Inverter control integrated machine: the energy conversion device of the entire system, the specific system wiring method is determined by the actual application scenario


    Specifications:

    Rated power3500VA/3500W
    Surge power7000VA
    Battery voltage24VDC
    Maximum AC charge current80A
    MPPT operating voltage range120VDC-45VDC
    Maximum PV charge current100A

    About installation:

    When the off-grid inverter is directly connected to the solar panel, the following matters need to be paid attention to:
    1. The output voltage of the solar panels connected in series must not be lower than 120V, otherwise the inverter will not be able to start;

    2. It is necessary to accurately measure the distance between the off-grid inverter and the solar panel to determine the cable length;

    3. Up to 6 inverters can be connected in parallel to provide a maximum output power of 33 kW;

    4. The inverter needs to be firmly fixed on the wall or other panels to prevent it from falling

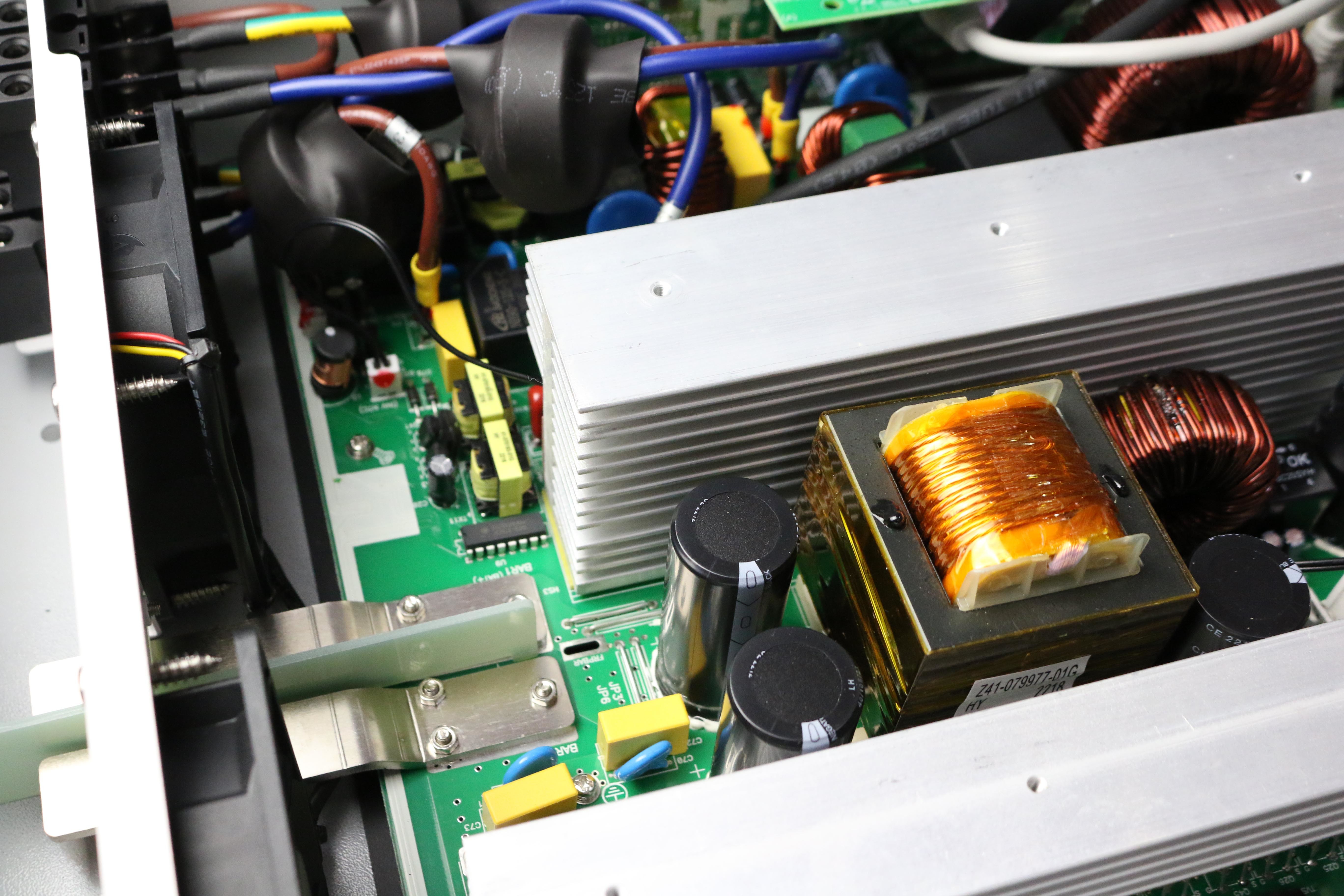

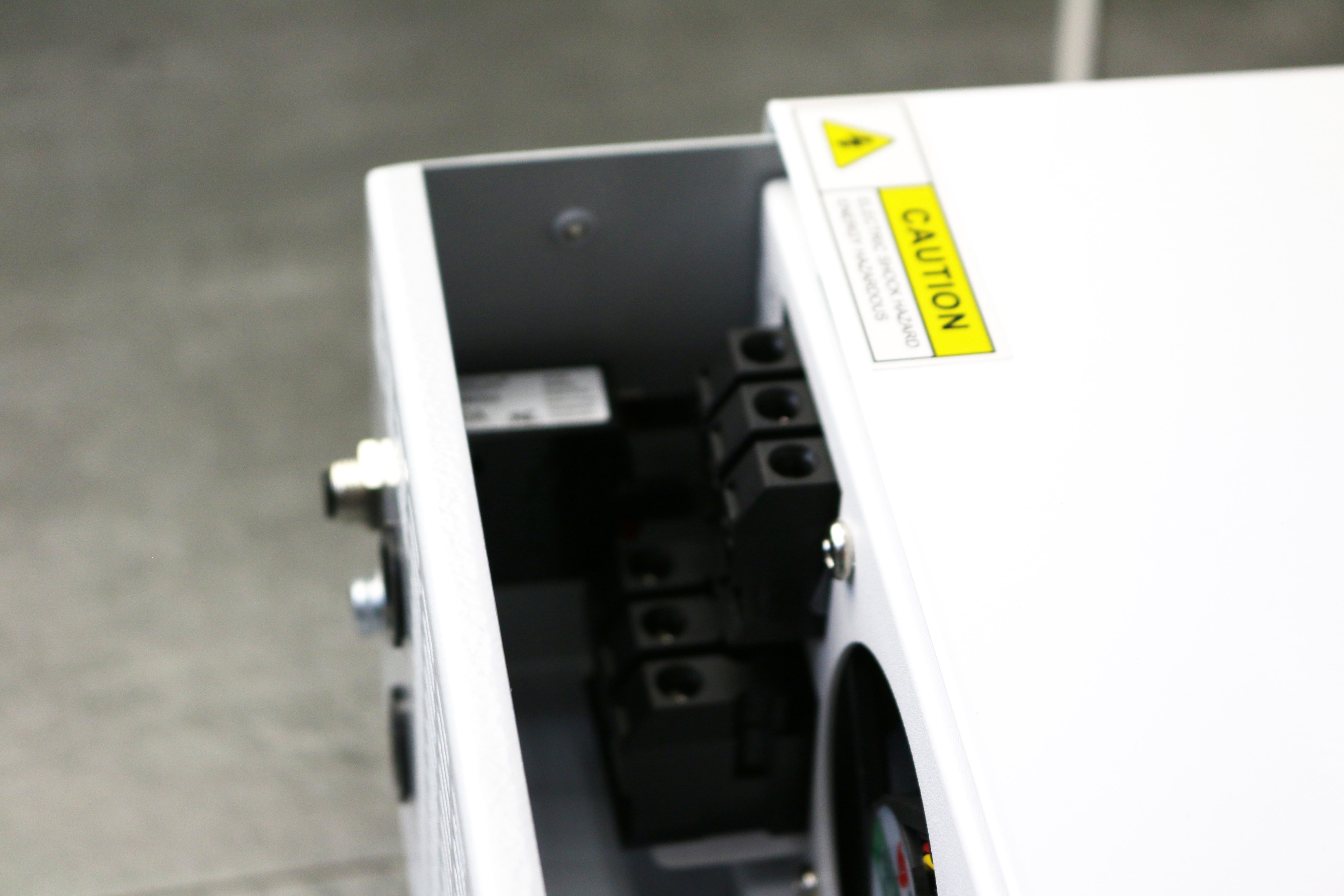

    Details:
